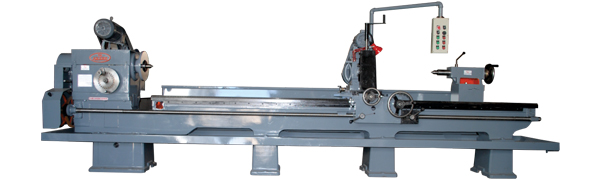

Thread Milling Machine

Specifications

• Bed Length 1000 to 10000 mm
• Job Diameter 20 to 300 mm
• Spindle Bore 100 mm
• Longitudinal Feeds 0.1 to 200 mm
• Milling Head Capacity 25 HSS to 40 mm
• Milling Head RPM 300 & 500 RPM
• Milling Head Motor 2 HP Min./Max.
• Taper Turning Attachment 300 to 9000 mm
• Lead Screw Diameter & Pitch 50 mm / 2TPI
• Multistarts Accuracy 0.15 degree

• Bed Width 375 / 450 mm Min./Max.
• Admit Between Center 300 to 9000 mm
• Main Spindle RPM 0.1 to 1 RPM
• Main Spindle Motor 3 HP
• Carbide Milling Head Speed
  30 mtr./min. to 90 mtr./min.
• Milling Head Nose ISO-40
• Pitch 20 to 300 mm
• Spindle Sleeve (Taper Bore) MT-4 / MT-5
• Number of Multistarts 1440
• Tail Stock Spindle Diameter 50 / 75 mm

Standard Accessories

• Main Spindle Motor 3 H.P with ac Variable Frequency Drive
• Dog Chuck
• Coolent Pump with Tank
• Spindle Sleeve
• Change Gear Set for inch & mm

• Cutter Head Motor 2 H.P.
• Taper Turning Device
• Chuck Plate
• Steady Rest
• 2 nos. Dead Center
• Electric Panel Board

Optional Accessories

• True Chuck
• Machine Lamp
