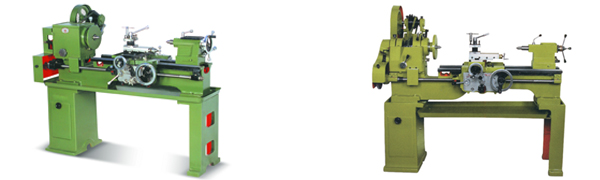

Light Duty Lathe Machine

1. Length of Bed. 1370(4'6") 1600(5'3") 1825(6'-00")
2. Width of Bed. 230 230 230
3. Height of Center 167 167 167
4. Swing over Cross Slide 180 180 180
5. Swing over Bed 320 320 320
6. Swing in Gap 525 525 525
7. Admit Between Center 725 940 1170
8. Spindle Bore 38 38 38
9. Approx. Weight 500Kg. 550Kg. 625Kg.
10. No. of Spindle Speed 8 / 30 to 750 RPM
11. Thrading Range 0.5 to 7 mm / 4 to 48 TPI
12. Tail Stock Spindle Travel 125
13. Tail Stock Taper MT-3
14. Leadins Screw Dia. Threads 25/4 TPI
15. Electric Motors/Speed 1 BP/1440RPM/62Pulley

Std, Accessories - Chuck Plate, Chain Gear Set (Inch & mm) Carriage Tray, Motor Rests with Mounting Bolts, Switch Stand, Tool Post Key, 2 nos., Deadcenter 01-nos Sleeve, Motor Pulley.
