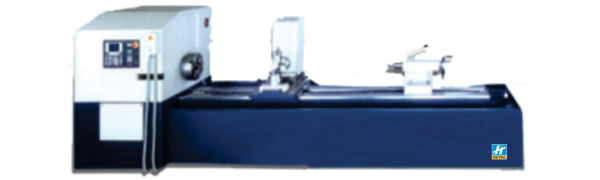

CNC Thread Milling Machine

Specifications

• Control System (Siemens) 802S / 802D
• Bed Width 450 / 600 mm Max.
• Spindle Bore 100 / 125 / 150 mm
• Thread (Pitch) 10 to 3000 mm
• Milling Head RPM 100 to 1000 RPM
• Milling Head Nose ISO-40
• Tail Stock Quill Travel 250 mm
• Longitudinal Rapid Travel (X axis)
  6 mtrs./min.
• Positioning Z axis 0.1 mm
• Repeatability Y axis 0.010 mm >
• Motor Capacity X axis 15 Nm
  Motor Capacity Y axis 15 Nm

• Admit Between Center 1000 to 7500 mm

• Job Diameter 300 mm
• Spindle Speed 0 to 50 RPM
• Milling Head Motor (AC Variable Drive) 3 HP
• Milling Head Cutter Capacity 5 to 31 mm
• Tail Stock Quill Diameter 75 mm
• Cross Slide Rapid (Z axis) 6 mtrs./min.
• Rotational (Y axis) 50 RPM
  Positioning X axis 0.1 mm
• Repeatability X axis 0.001 mm
• Repeatability Z axis 0.001 mm
• Motor Capacity Z axis 15 Nm

Standard Accessories

• 4 Jaw True Chuck (300mm)
• Drag Chain
• Dog Chuck (400mm)
• Face Plate
• Spindle Sleeve
• Front & Rear Cover
• Manuals.

• Coolent system
• Centralised Lubricating System
• Steady Rest
• Chuck Plate
• 2 Nos. Dead Center
• Tool Kit

Optional Accessories

• Power Chuck
• Tail Stock Quill
• Extra Steady Rest
• Spares
